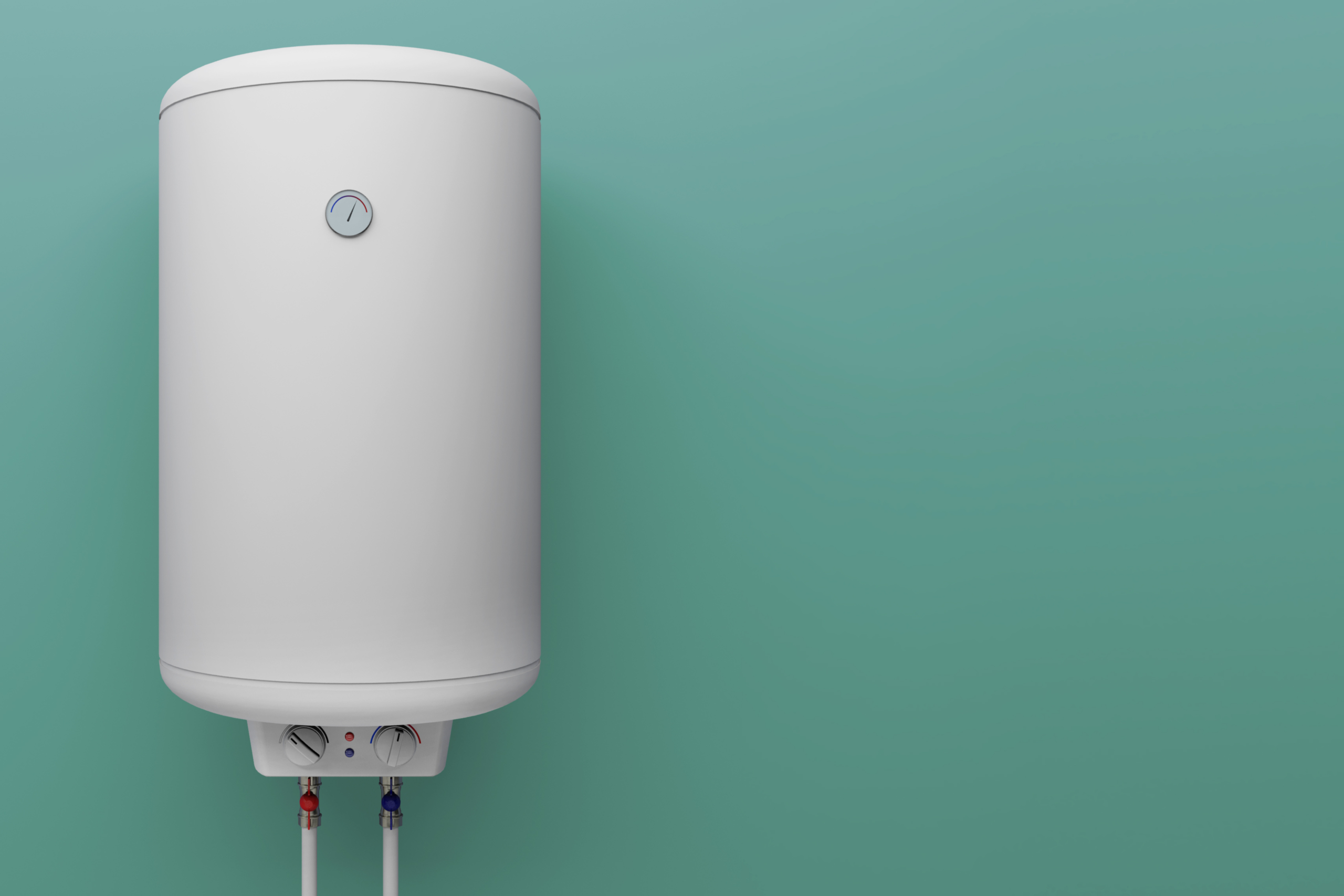

Water heaters are an essential part of any home. They provide hot water for showers, washing dishes, and doing laundry. Whether you have a 50-gallon electric water heater or a tankless model, proper breaker sizing is critical.
But choosing the wrong size breaker for your water heater can be a serious safety hazard.
This guide covers everything you need to know about selecting the right breaker size.
The breaker should always be rated at 125% of the water heater's stated amperage. An undersized breaker can overheat wiring and cause fires. An oversized breaker may not trip during an overload. When in doubt, consult a qualified electrician.
What Size Breaker For a Water Heater?
For an electric water heater, you’ll need a breaker that’s at least 30 amps, while for a gas water heater, it should be at least 20 amps. But it’s always better to be cautious and get a breaker that’s 10 to 20 amps stronger than the suggested minimum.
A 240-volt water heater has two hot wires that each carry 120 volts. These hot wires are wrapped around a “neutral” wire at ground potential. Some homeowners also wonder whether gas water heaters use electricity, and the answer may surprise you.
When you connect the breaker to the main panel, it completes the circuit so current can flow through the wires to the water heater.
If your home has a single-pole breaker panel, you’ll need to install a new panel with double-pole breakers to accommodate a 240-volt water heater. If you’re thinking about installing a water heater yourself, understanding breaker requirements is the first step.
Circuit Breaker Sizes for Each Water Heater Type
There are three types of water heaters you may have in your home: electric, gas, and tankless. Each has different circuit breaker requirements. If you’re considering a tankless model, find out whether tankless water heaters are loud before installing one.
Quick Reference Chart
| Heater Type | Wattage | Voltage | Breaker Size | Wire Gauge |
|---|---|---|---|---|
| Electric (standard) | 4,500W | 240V | 30A double-pole | 10 AWG |
| Electric (large) | 5,500W | 240V | 30A double-pole | 10 AWG |
| Gas | 36,000 BTU | 240V | 40A single-pole | 8 AWG |
| Tankless (small) | 11,000W | 240V | 60A | 6 AWG |
| Tankless (large) | 27,000W | 240V | 3x 40A | 8 AWG each |
How to Determine the Right Breaker Size
The breaker should be rated for at least 125% of the water heater’s stated amperage. Here’s how to calculate it:
- Find the wattage. Check the label on your water heater for its wattage rating.
- Divide by voltage. Divide watts by volts to get amps (e.g., 4,500W ÷ 240V = 18.75A).
- Multiply by 1.25. Apply the 125% safety rule (e.g., 18.75A × 1.25 = 23.4A).
- Round up. Choose the next standard breaker size (e.g., 23.4A rounds up to 30A).
If you’ve other appliances drawing power from the same circuit, you may need to upgrade to a higher-rated breaker. You might also want to learn about the right socket size for your water heater element while you’re working on your system. When in doubt, consult a qualified electrician.
What Standards to Consider
Several factors go into selecting the right breaker:
- Amperage rating. This is how much current the breaker can handle before it trips, and it’s the most important number.
- Voltage rating. This is the maximum voltage that can be applied to the breaker. It must match your water heater’s requirements.
- Number of poles. This refers to how many circuits the breaker controls. 240-volt heaters need double-pole breakers.
- Residential vs. commercial. Residential breakers are designed for home use, while commercial breakers handle higher loads.
- Manufacturer reputation. Choose breakers from reputable brands with warranties. Read customer reviews before purchasing.
Always select a breaker from a reputable manufacturer like Square D, Siemens, or Eaton. Look for UL listing and check that the breaker is compatible with your specific electrical panel brand. Breakers are NOT universally interchangeable between panel brands.
How to Install a Breaker
Once you’ve determined the correct breaker size, follow these steps:
- Turn off power to the main panel at the service disconnect or main circuit breaker. Use a non-contact voltage tester to confirm the panel is de-energized before proceeding.
- Remove the cover plate from the main panel and loosen the screws securing the old breaker.
- Pull out the old breaker and insert the new one, keeping it makes full contact with the bus bar. The breaker should snap firmly into place.
- Connect the wires to the new breaker’s terminal screws and tighten them securely. If it feels loose, don’t force it and verify you’ve the correct breaker model for your panel.
- Replace the cover plate and tighten all screws to secure it back in place. Loose connections are a leading cause of electrical fires, so make sure each wire is firmly seated with no exposed copper outside the terminal.
- Turn on power and test by turning on the water heater and checking for proper operation. Monitor the breaker for a few minutes to make sure it doesn’t trip immediately.
Working with electrical panels is dangerous. If you're not comfortable working with electricity, hire a licensed electrician. An improper installation can cause electrocution, fire, or damage to your electrical system.
Potential Dangers of the Wrong Size Breaker
Choosing the wrong breaker size is a serious safety hazard:
- Breaker too small. It will trip frequently during normal operation, which is more annoying than dangerous. However, repeated tripping can wear out the breaker mechanism over time, eventually causing it to fail when you need it.
- Breaker too large. It may not trip during a dangerous overload, meaning the wiring behind your walls could overheat beyond its rated capacity, melting insulation and potentially igniting nearby building materials. This is the more dangerous mistake.
- Wrong pole configuration. Using a single-pole breaker on a 240V circuit creates an extremely dangerous situation. Only one leg of the circuit is protected, leaving the other energized even when the breaker trips.
- Wrong wire gauge. Even if the breaker is sized correctly, using wire that’s too thin for the amperage creates a fire hazard. The wire will overheat before the breaker trips because it’s rated for more current than the wire can safely carry.
In any of these cases, it’s critical to choose the right size breaker and pair it with the correct wire gauge. The cost of a proper breaker ($10-30) and appropriate wiring is insignificant compared to the potential safety hazards.
Troubleshooting Tips
If you’re having problems with your water heater, try these steps before calling a plumber:
- Check the thermostat. Make sure it’s set to the correct temperature (typically 120°F). If you’ve a dual-element electric heater, check both the upper and lower thermostats since they operate independently. Not sure if your elements are compatible? Find out whether water heater elements are universal.
- Check the heating element. If the thermostat is fine, the heating element may need replacement. You can test the element with a multimeter set to continuity mode, and a reading of infinity means the element has burned out.
- Check the pilot light (gas heaters). Relight according to manufacturer’s instructions if it has gone out, and if the pilot light won’t stay lit, the thermocouple may need replacement.
- Flush the tank. Strange noises often indicate sediment buildup, and flushing the tank may solve the problem. You can also add hydrogen peroxide to your water heater to help break down deposits.
- Check the breaker. If the breaker keeps tripping, it may be undersized or the water heater may have an electrical fault. A breaker that trips immediately after resetting usually indicates a short circuit, which requires professional attention. If your water heater keeps turning off, the breaker could be the root cause.
If none of these steps resolve the issue, call a qualified plumber or electrician for professional diagnosis. Curious about how long it takes to replace a water heater? It might be time for an upgrade instead of a repair.
Frequently Asked Questions
You can, but honestly, I'd recommend hiring a licensed electrician unless you're very comfortable working with electrical panels. One wrong move in a breaker box can be seriously dangerous.
Not necessarily. Some smaller models just plug into a standard outlet. But most standard tank and tankless water heaters do need their own dedicated circuit breaker -- it's both a code requirement and a safety issue.
At minimum, a 30-amp breaker. But always verify with the manufacturer's specs for your specific model -- some draw more current than others.
Technically 15 amps is enough, but a 20-amp breaker gives you a better safety margin. For the small price difference, the extra headroom is worth it.
Do the math: 4500W divided by 240V gives you about 18.75 amps. Multiply by 1.25 for the safety rule and you get 23.4 amps, which rounds up to a 30-amp double-pole breaker.
There's a sweet spot. Going slightly bigger reduces annoying nuisance trips, but too big is actually dangerous -- an oversized breaker won't trip fast enough during an overload, which creates a fire risk. Stick to the 125% rule and you'll be in the safe zone.
Final Thoughts
Breaker sizing really comes down to three simple steps: find your heater's wattage, multiply the amperage by 1.25, and round up to the next standard size. That's it.
If any of that feels unclear or you're not comfortable working inside an electrical panel, call an electrician. The cost is nothing compared to the risk of a fire or electrical damage from a wrong-sized breaker. This is one of those jobs where getting it right the first time really matters.
Use a 30-amp double-pole breaker for most standard electric water heaters and a 20-amp breaker for gas heaters. Always follow the 125% rule, and hire a licensed electrician if you're unsure about any part of the installation.
